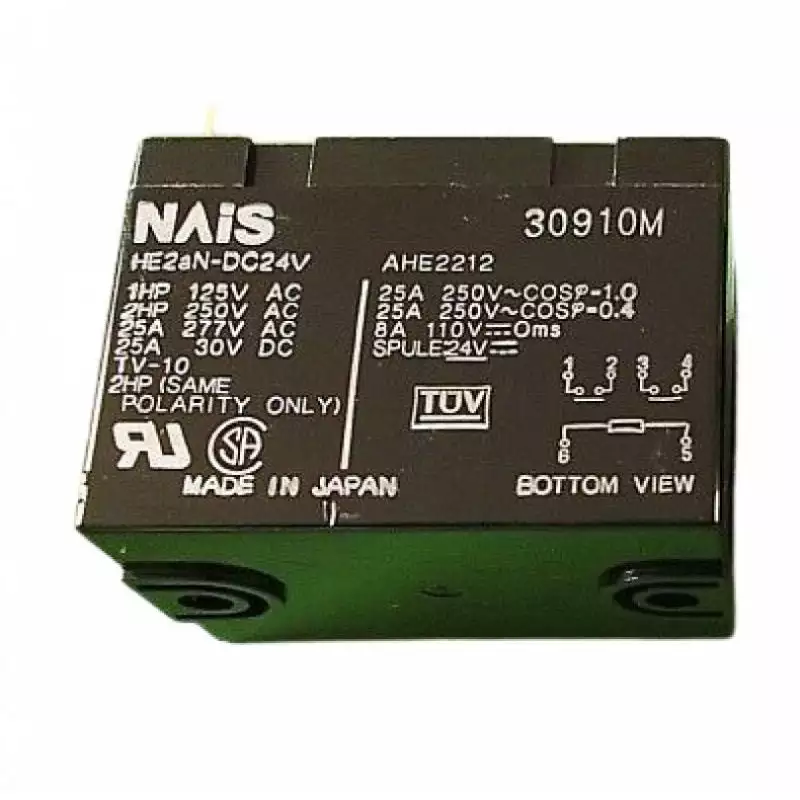

Relé HE2AN-DC24V

Physical

• Case/Package 300
• Contact Material Silver, Tin
• Mount Chassis Mount, PCB, Plug-In
• Number of Pins 6
• Weight 90 g

Technical

• Ambient Temperature Range High 55 °C
• Coil Current 80 mA
• Coil Power 1.92 W
• Coil Resistance 300 ?
• Coil Type Non-Latching
• Coil Voltage (DC) 24 V
• Contact Current Rating 25 A
• Current Rating 25 A
• Max Current Rating 25 A
• Max Operating Temperature 55 °C
• Max Voltage Rating (AC) 277 V
• Max Voltage Rating (DC) 30 V
• Manufacturer Package Identifier HE2AN-DC24V
• Min Operating Temperature -50 °C
• Number of Contacts 2
• Operate Time 30 ms
• Packaging Bulk
• Power Consumption 1.92 W
• Relay Type General Purpose
• Release Time 10 ms
• Switching Capacity 6.925 kW
• Switching Current 25 A
• Termination Plug
• Test Voltage 10 kV
• Throw Configuration DPST
• Voltage Rating (AC) 277 V
• Voltage Rating (DC) 30 V
• Dimensions
• Depth 33 mm
• Height 35 mm
• Length 50 mm
• Compliance
• Approvals CSA, TUV, UL, VDE
• Lead Free Lead Free
• Radiation Hardening No
• Ratings IP40
• REACH SVHC Unknown
• RoHS Compliant
